Introduction
While preparing for green screen production by far the most important thing is to properly prepare the background. If the background is not well prepared you cannot have a perfect result, even if the keying process in the software is done properly.
This article lists all the necessary elements of preparing the background before production.
Preparing the Background
Depending on the material used as background, there are different issues to look out for, but in general, these are the following:
- Check if the background has any visible imperfections and fix them if it has.
- Avoid creases in the material.
- The background should not have any holes, tears, or ruptures.
- Ensure the background is clean and there are no dirt spots on it.
- The background should disperse the light as much as possible and have no reflections or shiny parts
Preparing the Lighting
To achieve a clean result, good lighting is a must. When using clean plates, the uniformity of the background is not as important, but it shouldn't change during production.
Background Lights
The background studio lights aim to light the green background as evenly as possible. Generally speaking, the more even the background is lit, the clearer the final keying will be. Illumination of both the talent and the background should be homogeneous and major casted shadows on the background with high contrast should be avoided.
You could also aim to use real shadows in your final composite. To make it look natural you need to be mindful of some things:
- The real-life shadow should align with the light sources in the scene
- The shadow only should be cast to the floor, and not to the back or side walls
Talent Lights
When you are setting up the lighting for your presenter (with the talent lights), you should keep in mind how it would affect the lighting of the background. Moving or talent-tracking spotlights is considered a bad idea since in most green screen setups they would ruin the balance of the background lighting.
You should also consider matching the position of lights of the virtual studio to the real studio, so the talent will look more like part of the virtual scene. This way you can achieve more realistic virtual setups.
Think about the environment in which you are composing your subject. However, the green and talent should always be well-lit. If the talent should be darker in the composite then change its brightness in Aximmetry

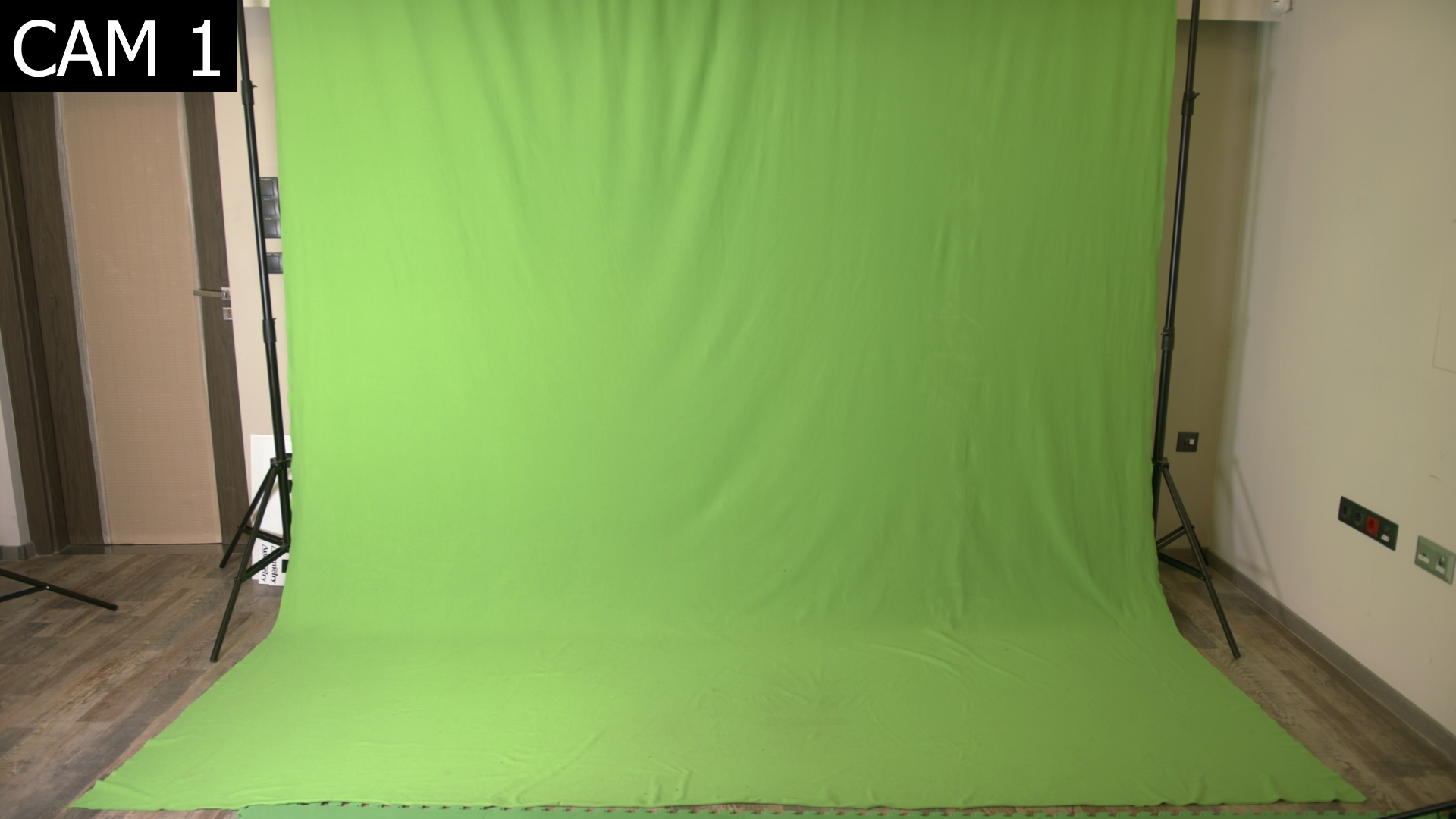

Example of a Bad Lighting Setup
As you can see in the image below, the lighting of the background is far from even. The left side is way more bright than the right side of the Green Screen.

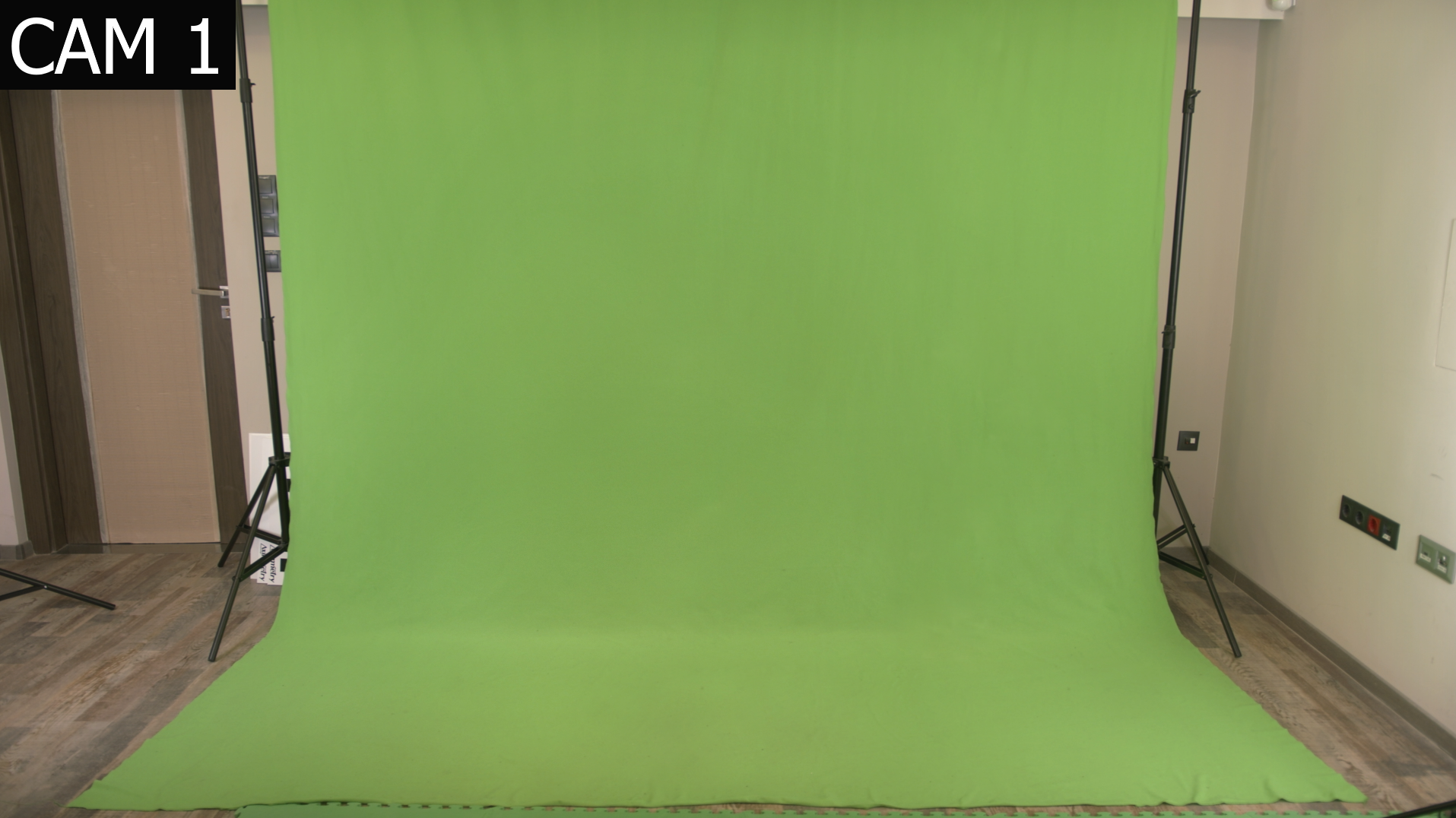

Example of a Good Lighting Setup
Camera Settings
We strongly recommend turning off auto exposure and auto white balance in your camera.
Also, set the ISO (or Gain, depending on your camera) to its lowest native value to minimize the noise on the camera's image. Additionally, we recommend adjusting the shutter speed to higher values to minimize motion blur to improve the quality of the keying. Don't forget to keep an eye on the frequency of the studio lights as well to avoid flickering on the camera's image. The lowest possible value to achieve both of these goals is usually between 1/100 and 1/200 of a second.
These adjustments will leave you with a darker image. You should compensate for this darkness by adding/adjusting the studio lights to make the studio environment brighter.
If you cannot make the studio any brighter, and you are still having too dark of a camera image, you can try the following camera adjustments:
- Open up the aperture of the camera lens to let in more light.
NOTE: This will also leave you with a shallower focus depth, where fewer things will remain sharp in the image. - Slightly increase the ISO. Ensure you are only using native ISO values (these are values that your camera sensor is physically capable of supporting, and therefore do not require the camera to digitally post-process the image).
The resolution of the camera can be higher than the Frame Size in Aximmetry. A higher resolution can produce better-quality keying.
NOTE: For tracked cameras using lens distortion, ensure that the aspect ratio remains the same when the camera's resolution is higher than the Frame Size.
Preparing the Objects and the Talent
Green (or the color of the background) and colors that can reflect green, should not be worn. Reflective, sparkling clothes and accessories, such as white clothes or jewelry, tend to be a bad idea. They reflect a high amount of green, which leads to holes in the final image.
The same idea can be applied to objects, such as chairs, tables, or bottles. Green objects will be cut out with the background, and reflective parts (e.g. chrome-plated legs) can result in holes in the final composite.
Highly saturated colors are also more difficult to be keyed (e.g. red, orange, etc.).
Positioning the Talent and Objects of Interest
You want to keep your subject as far away from the screen as possible. This way, the talent can be better lit without the lights affecting the background, and the distance also keeps the reflection of the green background of the talent, which will result in better keying.
Continue to Keying
Once you have finished preparing your Green Screen, you can move on to the Keying:
