Introduction
This document discusses the manual adjustment options of the Digital Extension.
NOTE: If you have previously run a LUT measure on your scenes, then you do not need to adjust any of the pins present on the DIGIT EXT ADJ control panel. However, you can still change the pin values measured by Aximmetry, for artistic reasons, for example.
The DIGIT EXT ADJ Control Panel
The DIGIT EXT ADJ (short for Digital Extension Adjuster) control panel allows for the manual adjustment of the Digital Extension's colors and exposure.
Navigate to the LEDWALLS control board to select this control panel:

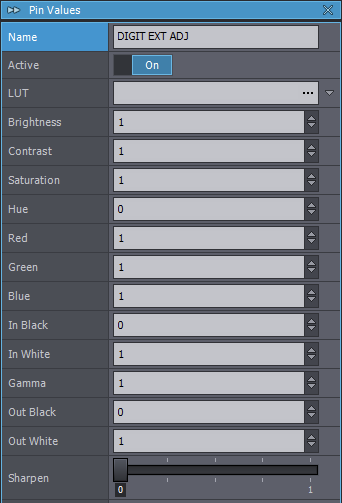

After selecting the DIGIT EXT ADJ control panel, you should see the following pins on the Pin Values panel:
LUT
Here, you can specify any standard Cube LUT files.
NOTE: If you just ran a LUT MEASURE process on your computer, then the LUT file of the last successful measurement should automatically be set here.
