Introduction
This document describes the control panels where the FILL can be adjusted, including the adjustment options located at these control panels, namely
- at the FILL control panel,
- the FILL ADJUST X control panels,
NOTE: This document supposes that you are already familiar with the concept of FILL. If not, then we first recommend referring to the following document:
Introduction to LED Wall Production
NOTE: Some aspects of the FILL can also be controlled by the LED Wall X control panels. To learn more about these, please refer to the following document:
The LED Wall X Control Panels
FILL Control Panel
On the LEDWALLS control board, the FILL control panel provides adjustment options for the FILL render pass:
IMPORTANT: The adjustments made here are applied to the FILL's image on every LED Wall.

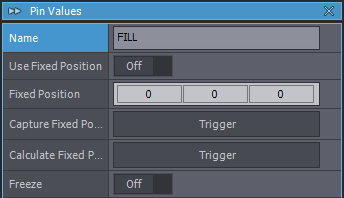

After selecting this control panel, head over to the Pin Values panel to see the following pins:
Use Fixed Position
Displays the FILL render pass from the position specified at the Fixed Position pin.
This is useful for capturing reflections displayed by additional LED Walls with a moving studio camera.
Fixed Position
Fixed Position allows for manual adjustment of the FILL's position, including its X, Y, and Z (+left-right, +up-down, and +forth-back, respectively) coordinates.
Capture Fixed Position
It captures the current position of the selected camera's tracking input and sets it as the new value of Fixed Position.
Calculate Fixed Position
It calculates the center point of the LED Walls and sets it as the new value of Fixed Position. Use only with curved or multiple LED Walls.
Freeze
When turned ON, the currently displayed FILL frame will be held out. This is beneficial when the FILL is only used for ambient lighting, and no dynamic reflections are needed. It also saves some performance, as the FILL's image does not need to be calculated/rendered for every new output frame.
FILL ADJUST X Control panels

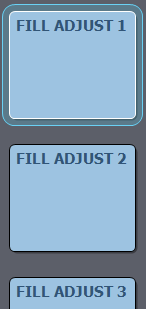

You can also independently make adjustments to the FILL render pass for each LED Wall using these panels:
NOTE: To adjust multiple LED Walls FILL images together, simply select the corresponding ADJUSTER panels and set their properties together.
Since FILL is used for ambient lights and reflections, adjusting its parameters, such as Brightness or colors, is common.

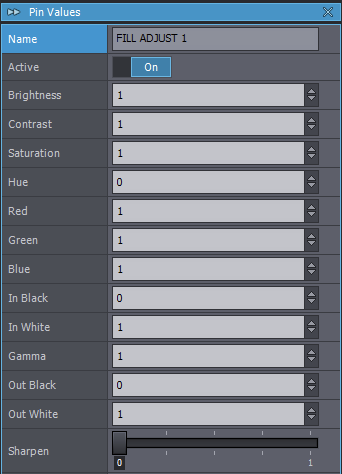

After selecting a FILL ADJUST X control panel, head over to the Pin Values panel to see the following pins:
