Introduction
This document discusses the preferred way to fit the Virtual and Physical LED Walls together, using Aximmetry's Auto Place feature.
Monitoring of the Current Fitment
On the LEDWALLS control board, head to the STUDIO control panel, and turn on Show Studio:
Fitting of the Virtual and Physical LED Walls

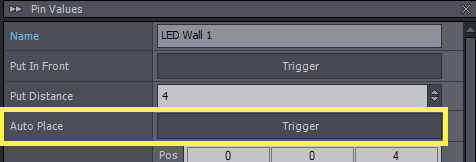

Turn the camera to face the LED Wall's center. On the LEDWALLS control board, select the LED Wall X control panel, and on the Pin Values panel, look for the Auto Place pin, and click on Trigger:
This will display an Aruco Marker on the selected LED Wall to be captured by the studio camera. Aximmetry uses this information to automatically calculate the LED Wall's transformation (position and rotation) relative to the studio mask's origin point.
After a successful detection, you should see a change in the Transformation pin's values:
Repeat this step for every LED Wall.
NOTE: Using multiple cameras for production, any camera can perform this step, supposed their position (origin point) has already been matched (see: Positioning Multiple Cameras in One Scene)
