Introduction
This document discusses the LED Wall X control panels' adjustable pins.
Adjustable Pins

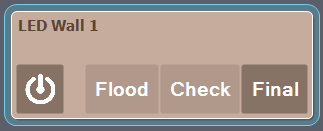

To see the adjustable pins of the LED Wall X control panels, navigate to the LEDWALLS control board, then select the LED Wall X control panel you wish to adjust:

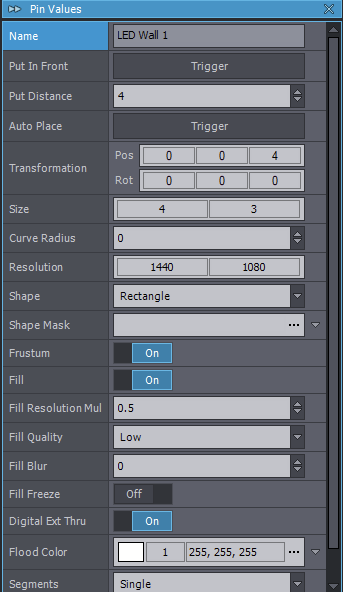

Once you select the control panel, head over to the Pin Values panel (by default, it's on the upper right side of the user interface).
There you should see the following pins:
NOTE: As the below-mentioned pins were already discussed in earlier documents, to learn about
- Auto Place
- Size
- Curve Radius
- Resolution
- Shape
- Shape Mask
please refer to the following documents:
Setting Up the LED Walls
Fitting of the Virtual and Physical LED Walls
Put in Front
Triggering Put in Front will place the virtual LED Wall in front of the virtual camera (the virtual counterpart of the studio camera). This is useful to begin the manual fitting process of the virtual and physical LED Walls.
Put Distance
Put Distance determines the distance (in meters) between the virtual LED Wall and the virtual camera when Put in Front is triggered.
Transformation
The Transformation parameters are as follows:
Pos - Position, in order of appearance, these are the X, Y, and Z coordinates of the virtual scene. These parameters use meters for measurement.
Rot - Rotation, in order of appearance, these are the rX, rY, and rZ coordinates of the virtual scene. These parameters use degrees for measurement.
NOTE: You can learn more about Camera and Head Transformations here.
Frustum
Turns ON or OFF the Frustum's image. When Frustum is turned OFF, the LED wall displays the Fill's image in place of the Frustum (unless Fill is turned OFF too, in which case, there is no output on the LED Walls).
Fill
Turns ON or OFF the Fill's image. When Fill is turned OFF, only the Frustum's image is displayed on the LED Walls.
Fill Resolution Mul
Short for Fill Resolution Multiplier. It adjusts the resolution of the Fill by applying a multiplier value on the Frustum's resolution.
When it is set to a value higher than 1, the Fill's resolution will be higher than the Frustum's.
When it is set to a value of 1, the Fill and the Frustum will have the same pixel resolution.
When it is set to a value lower than 1, the Fill's resolution will be lower than the Frustum's.
Fill Quality
It is used only with Unreal. Options include Low, Medium, High, and Custom. The Medium setting enables Lumen, while the Custom setting can be defined arbitrarily in the LED Wall's blueprint in Unreal Editor.
Fill Blur
Fill Blur applies a Blur mask to the Fill's image. The higher the value of the Fill Blur, the more blurred the Fill's image will become.
Fill Freeze
When turned ON, it freezes the Fill's image.
Digital Ext Thru
Short for Digital Extension Through. When turned ON, the Physical LED Wall will be visible through the Digital Extension's mask (this is the recommended setting for the main LED Wall, which is captured by the studio camera).
Flood Color
Flood Color adjusts the color output on the LED Wall when Flood monitor mode is selected
Segments
Segments divide a single LED Wall output into several slices (2 to 8). The slices are individually adjustable. When Segments is not set to Single, additional pin values appear.
Set Equal Slices
Automatically adjust the slices' Resolution and Pixel Offset to fill the area of the LED Wall.
X Engine
In a Multi-Machine setup, the X Engine pin determines which slices are rendered by which computer/machine.
X Pixel Offset
It applies an offset on the selected slice. It allows for manual adjustment of the position of the slices.
X Resolution
It sets the resolution of the selected slice.
Engine
In a Multi-Machine setup, the Engine pin determines which LED Walls' output is rendered by which computer/machine.
