Introduction
The following document describes how to use Aximmetry Eye with a wired connection.
If you would like to read more about the application, please refer to this document: What is Aximmetry Eye and How to Use it?.
Required Hardware
Must have hardware:
- Network cable (If you directly plug the phone into the PC, you only need one. If you use a switch or a router, you will need two.)
- Ethernet Dongle for the iPhone
Optional hardware:
- Ethernet Dongle for the PC
- Switch or Router
Ethernet Dongle for the iPhone
To connect an Ethernet cable to your iPhone, you will need an Ethernet dongle.

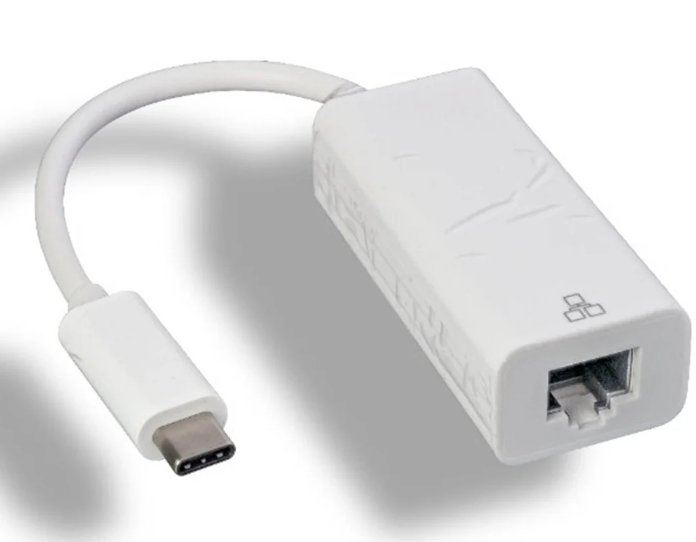

For iPhone 15 and later, you will need a USB-C to RJ45 converter:

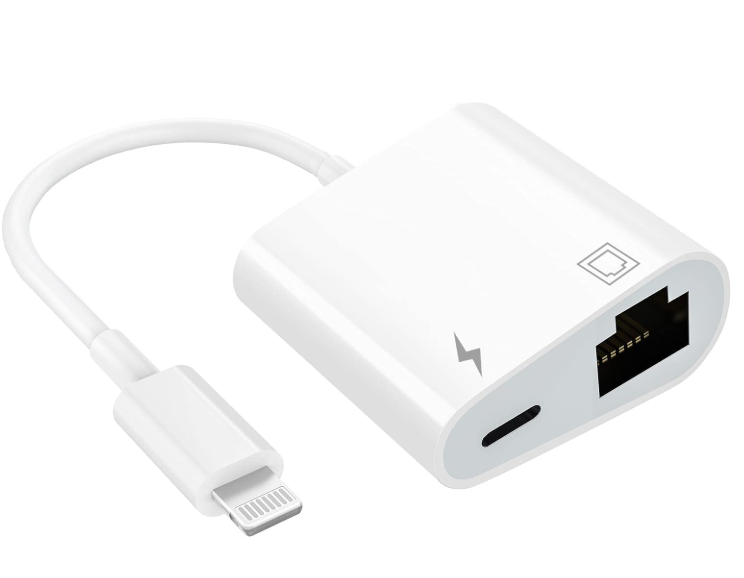

For iPhone 14 or older versions, you will need to use a Lightning to Ethernet converter:
Assigning the IP Address

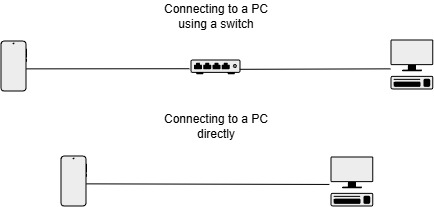

You can choose to connect your iPhone to your internal network with a router or without one (e.g., directly to your computer).
If you choose to connect to a network with a router, you are all done, as the router will automatically assign an IP address to your iPhone.
Assigning the IP Address Manually

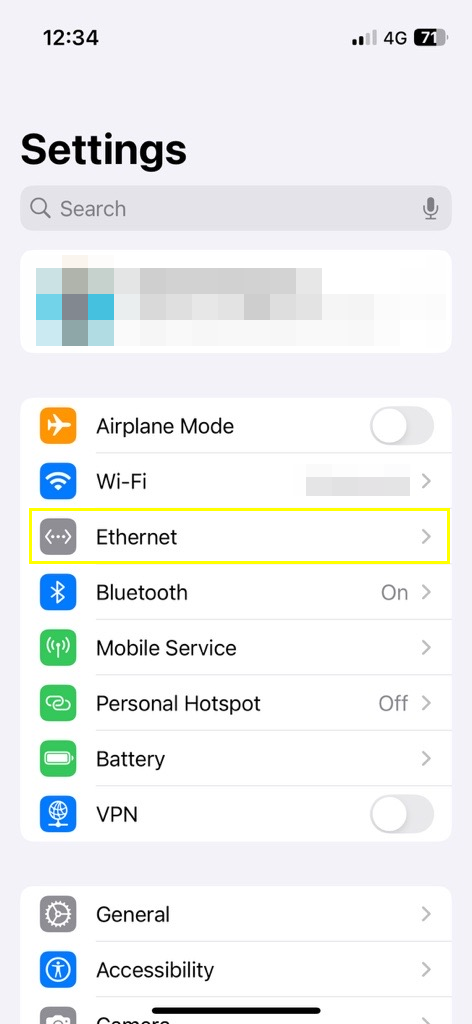

To assign the IP address to your iPhone manually, open the Settings menu on your phone.

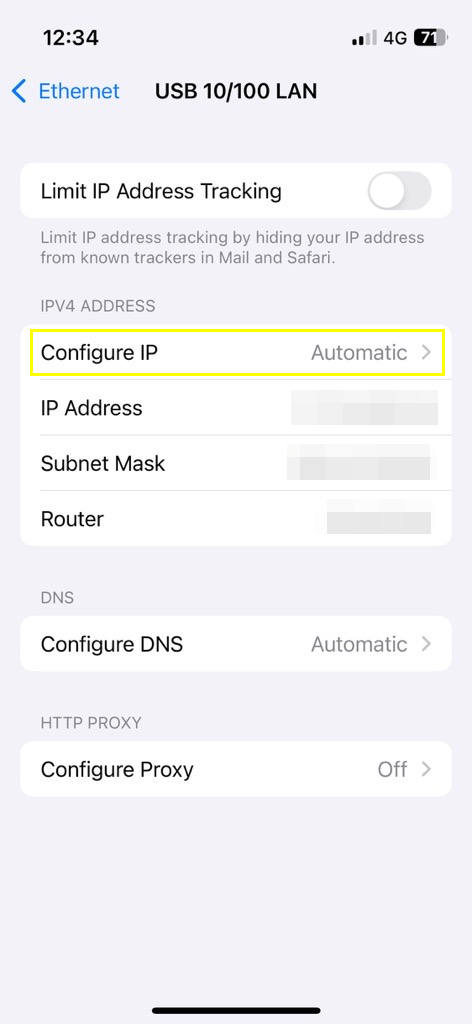

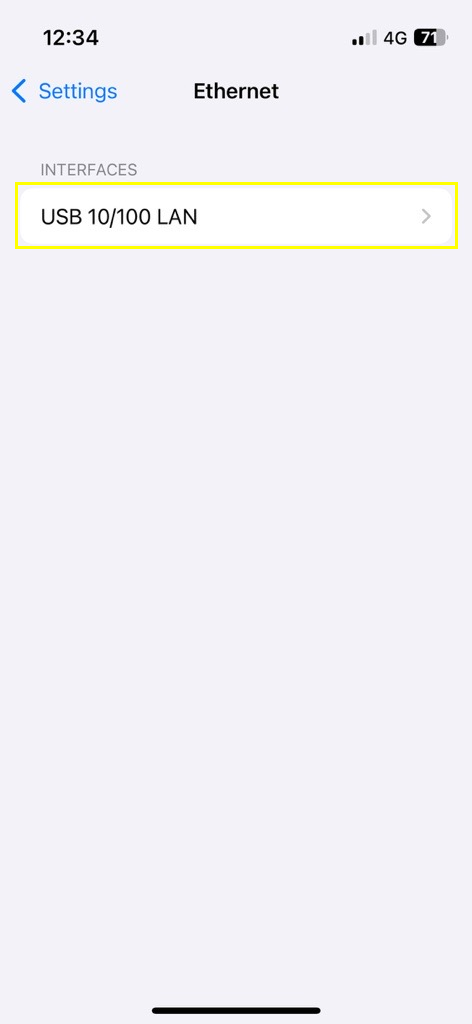

Select the Ethernet option, then select the interface, and then the configure IP option.

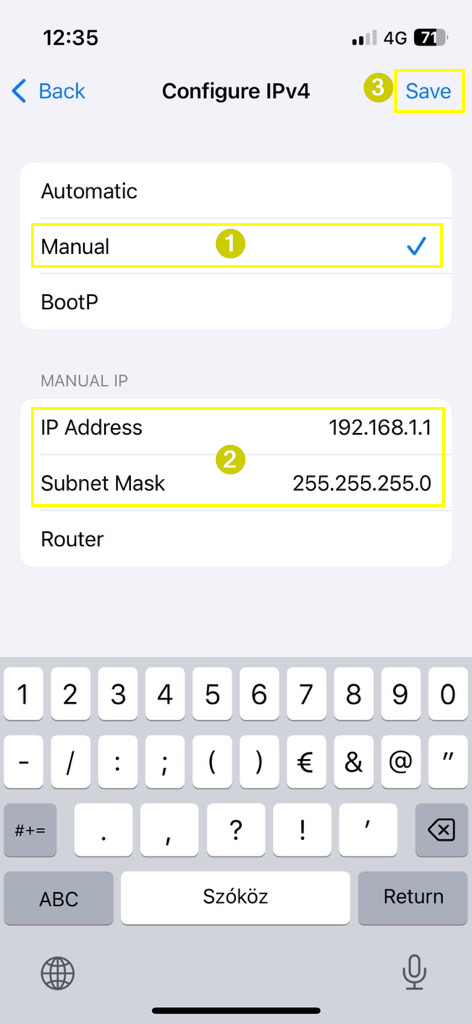

Set it to manual mode and enter your desired IP address.
Continue
Continue setting up your Aximmetry Eye by referring to the following steps: Selecting the Devices.
