OSC In-, and Output Setup

Introduction

This article describes how to set up In-, and Outputs for receiving and sending OSC messages.

You can read more on the OSC protocol in the OSC section of the general Controllers document.

We created a separate article on how to control the flow graph in Aximmetry with OSC and also how to create OSC messages. Please find it here.

Setup

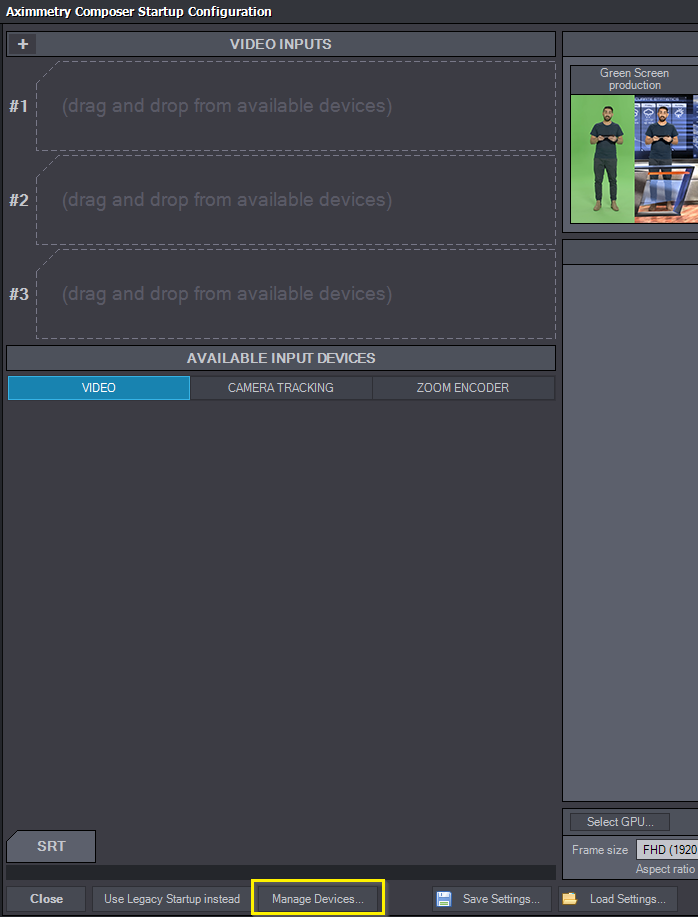

In the Startup Configuration, go to Manage Devices...

The Device Manager is also available from the Edit menu while Aximmetry Composer is running.

Input

From OSC, select Server

Here you can select the network Adapter and Port you want to receive OSC messages through. Choose -any- for listening on all available adapters. The default settings are usually suitable.

Output

To send OSC messages to external devices, in Manage Devices, go to the OSC Out and select UDP.

Here you have to specify all the target devices you want to send OSC messages to.

Click Add and specify the IP (or Hostname) and Port of the target device.

Repeat this step for all desired devices.

Please note that if you have selected an adapter in the OSC / Server section, Aximmetry will use the same adapter for outputting OSC messages.
